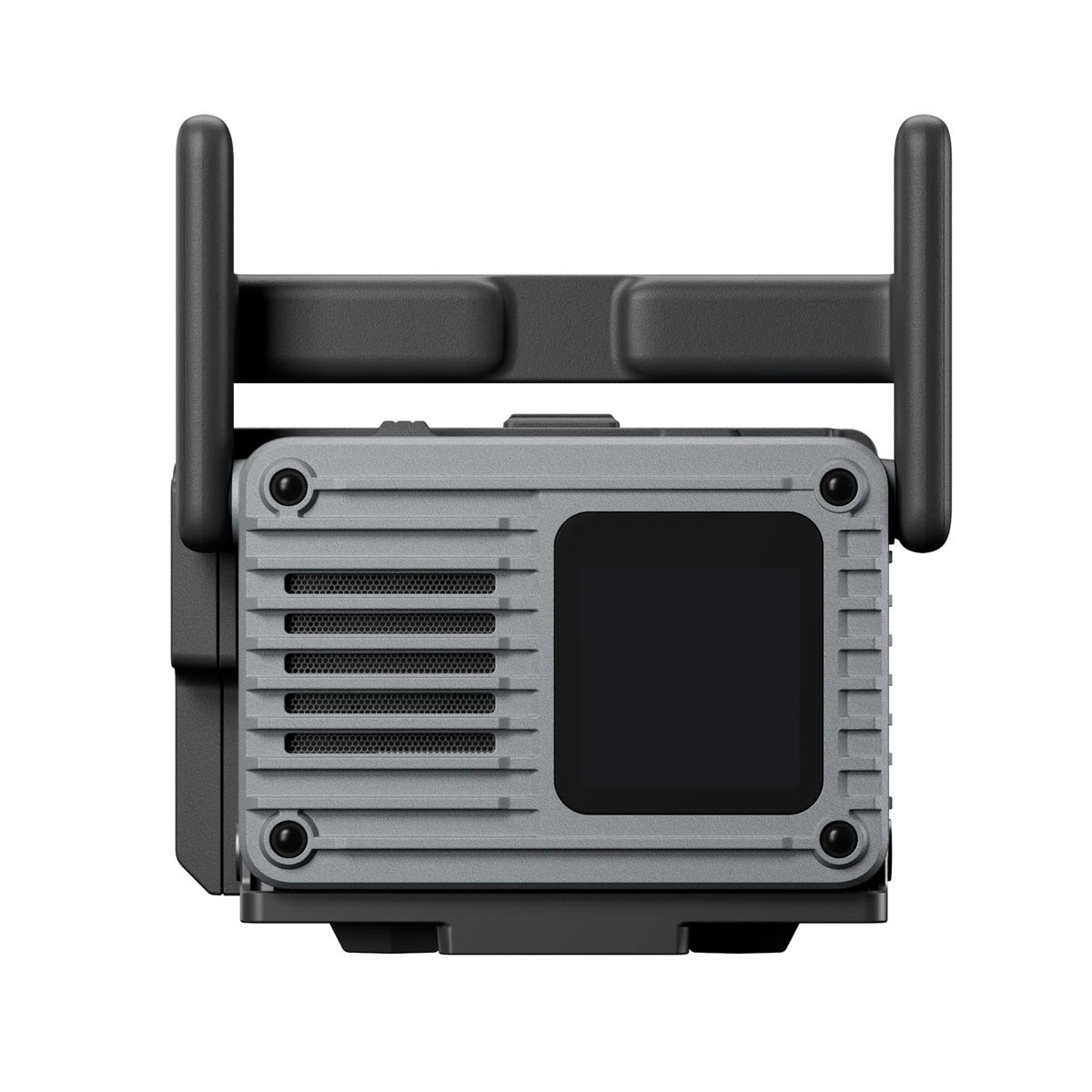

DJI SDR Transmission 2 Wireless Video Transmitter

DJI SDR Transmission 2 is a versatile wireless video transceiver for stable monitoring on complex productions. It supports DCI 4K/60fps 10-bit HDR video in H.265 at up to 50 Mbps, with Auto Channel 2.0 managing frequencies in busy locations. Low-latency transmission, camera switching without re-pairing, and selectable transmitter or receiver operation suit directors, operators and focus pullers.

Flexible Transceiver Design

DJI SDR Transmission 2 can operate as either a transmitter or receiver, with a switchable design that adapts to different monitoring setups. At 136 grams, its compact body is easy to mount on a camera, rig or other production equipment.

Expanded Connectivity

The Expansion Plate adds one SDI output, one HDMI output and four USB-C ports for flexible monitoring configurations. SDI metadata transmission is supported, while the Transceiver Case provides protection and additional mounting points for car rigs and outdoor setups.

Flexible Power Options

The transceiver supports industry-standard NP-F batteries with an input range of 6.8 to 8.4 V. It can also run from a USB-C Power Delivery charger at 15 V or 9 V and 3 A, or draw power directly from compatible DJI Ronin series gimbals, including the DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2 and Master Wheels.
